SATELLITE OVERVIEW

ABS-4, an SS/L FS1300 satellite, is equipped with S-band and Ku-band coverage over the MENA region. It is a geostationary mobile multimedia satellite that provides direct broadcast of digital audio and video content to mobile users via two high-powered cross polarized Ku/S-band beams: West Beam and East Beam.

ABS-4 is also capable of distributing digital data content to terrestrial repeater networks within the beam via two Ku/Ku-band beams.

Services:

  • Direct broadcast services to mobile users
  • Distributing digital data content

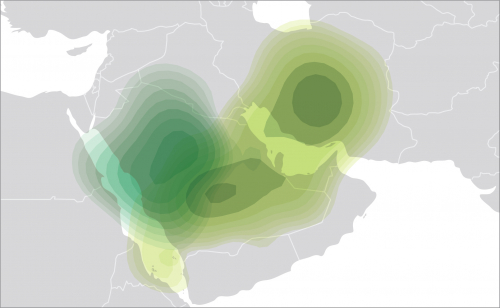

KU/S BAND BEAMS

West Beam | 56-70dBW
East Beam | 56-70dBW

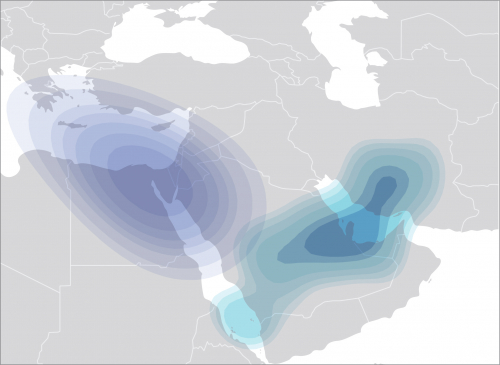

KU/KU BAND BEAMS

West Beam | 48-56dBW
East Beam | 48-57dBW

PARAMETER KU/S-BAND KU/KU-BAND
Number of Transponders 2 2
Transponder Bandwidth (MHz) 25 25
Uplink / Downlink Frequencies (GHz) 13.858-13.883/2.630-2.655 13.824-13.849/12.214-12.239
Uplink / Downlink Signal Polarization Linear/Circular Linear/Linear
Cross-Polarization Separation (dB) 30 30
EIRP (dBW) 70 (East Beam)
70 (West Beam)
56 (East Beam)
57 (West Beam)
TWTA Size (Watts) 135 (East Beam)
135 (West Beam)
150 (East Beam)
130 (West Beam)
TWTA Redundancy 24:16 (Power combined) (East Beam)
12:8 (Power combined) (West Beam)
2:1 (East Beam)
2:1 (West Beam)
Uplink SFD (dBW/m2) -105 to -85 (at 14.5 dB/K) (East Beam)
-105 to -85 (at 14.0 dB/K) (West Beam)
-105 to -85 (at 14.5 dB/K) (East Beam)
-105 to -85 (at 14.0 dB/K) (West Beam)
G/T (dB/K) 14.5 (East Beam)
14 (West Beam)
14.5 (East Beam)
14 (West Beam)
